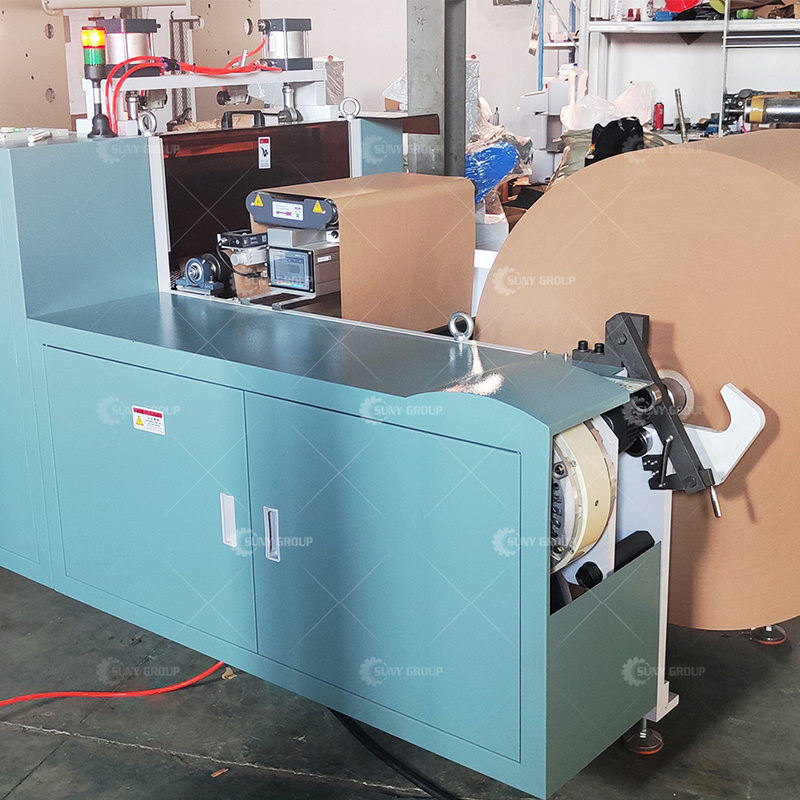

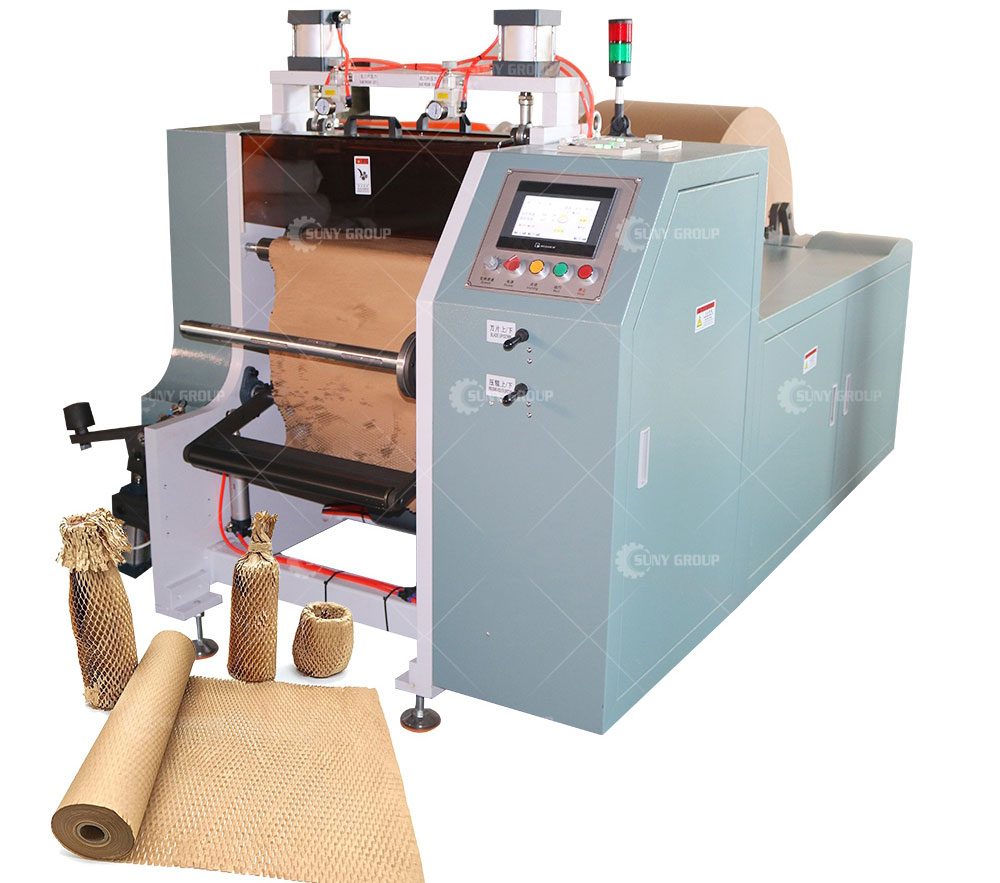

R-S-500 Honeycomb Paper Making Machine
- R-S-500
- Kraft Paper,Recycled Paper,Corrugated Paper,White Cardboard
- 0-150m/min
♦Product Usage Guide
Prepare dry and clean kraft, recycled, or corrugated paper. Inspect the machine before use, ensuring power, transmission, and cutting blades are in good condition and properly lubricated. Load the paper roll, adjust tension, and feed smoothly. Set width, cutting length, and speed on the control panel. Start the machine to form uniform honeycomb paper, then rewind or cut as needed. Regularly check product quality and maintain the machine by cleaning scraps and inspecting blades to ensure long-term, reliable performance.
♦Technical Parameters
|
R-S-500 Honeycomb Paper Making Machine |
|
| Machine Model | R-S-500 |
| Max Material With | 515mm |
| Machine Working Speed | 0-150m/min |
| Unwinding Diameter | Max.1200mm |
| Rewinding Diameter | Max.300mm |
| Unwinding roll weight | Max.1 T |
| Unwinding Shaft | 3” |
| Rewinding Shaft | 1”/1.5″/2″/3″ |
| Machine Size | 1850*1350*1300(LxWxH) |
| Machine Weight | 1800KG |
| Machine Power | 5KW |
| Power Supply | 380V 3Phase 50HZ |
♦Product Advantages
♦High Efficiency Production – Advanced automation and precise forming system enable fast, continuous production of uniform honeycomb paper.
♦Versatile Material Compatibility – Supports kraft paper, recycled paper, and corrugated paper, suitable for a wide range of packaging applications.
♦Durable and Easy Maintenance – Sturdy construction with user-friendly design ensures long-term reliability, easy operation, and minimal downtime.
