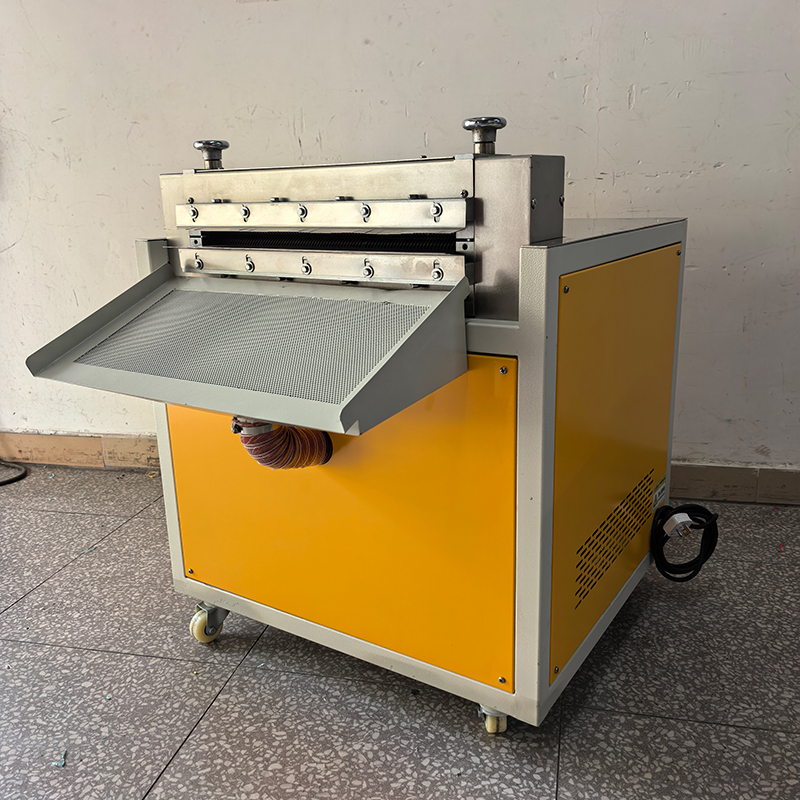

R-S-600B Crinkle Paper Shredder
- R-S-600B
- kraft paper, corrugated paper, A4 printing paper, and recycled paper
- About 50-60kg/hour
♦Product Usage Guide
Load medium-thickness paper materials such as kraft paper, corrugated sheets, A4 paper, or recycled paper onto the feeding tray to begin the shredding process. These materials are ideal for bulk processing because they offer a good balance between durability and flexibility, ensuring consistent output quality without overloading the machine. Proper material selection not only improves efficiency but also extends the service life of the equipment.
Before starting the machine, it is essential to properly adjust the paper alignment and tension settings. Accurate alignment ensures the paper feeds straight into the rollers, preventing skewing or uneven movement during operation. At the same time, correct tension control allows the material to move smoothly through the system without slipping or excessive resistance. These adjustments significantly reduce the risk of paper jams and mechanical interruptions. By ensuring stable feeding conditions, operators can maintain consistent shredding performance, improve efficiency, and minimize downtime, ultimately supporting continuous and reliable machine operation in industrial production environments.
On the control panel, operators can select the appropriate shredding width and speed according to production needs. The 600B model is specifically designed to produce thicker and more durable crinkle paper, making it highly suitable for protective packaging and shipping applications. Compared with the decorative-focused 600C or the high-capacity R-S-800 model, the 600B offers a well-balanced combination of strength, efficiency, and operational flexibility, making it an excellent choice for various industrial packaging requirements.
During operation, continuously monitor the shredded output to avoid overfilling the collection area, which could affect workflow efficiency. After completing the task, switch off the power supply, clear any remaining paper scraps, and thoroughly clean the machine. Regular inspection of blades and rollers for wear and tear is essential to ensure consistent performance, reduce downtime, and extend the overall service life of the equipment.
♦Technical Parameters
|
R-S-600B Crinkle Paper Shredder |
|
| Paper strip width | 3mm(or other customized at your request) |
| Feed inlet size | 500mm |
| Motor Power | 1.5KW(pure copper core gear reducer motor) |
| Dimensions | 2500*1080*1060mm(include paper reel stand) |
| Wooden Box size | 775*870*1100mm; 190kg |
| Machine Weight: | 180kg |
| Voltage | 220V, 50Hz, single phase |
| Accepted Paper Thickness | 17-350g |
| Capacity | About 50-60kg/hour |
| Cutter shaft material | Alloy steel |
| Cutter holder material | 45# steel wire cutting and finishing |
| Scraper material | Copper plate wire cutting finishing |
| Platform material | 2mm thick 304 stainless steel |
| Machine body material | 40*40*2mm channel steel surface powder spraying process |
| Wall panel material | 2mm thick carbon steel surface powder spraying process |
| Casters | Nylon material with brake |
| Electrical appliances | Schneider contactor + national standard start-stop switch |
| Applicable paper | 14-350 grams of various papers |
|

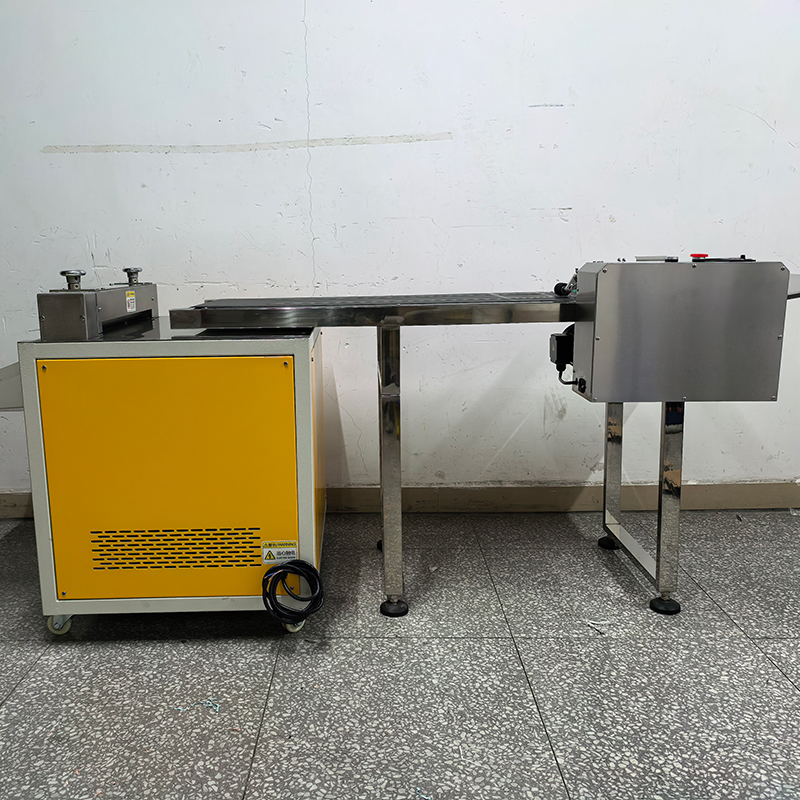

R-S-600B Auto Sheet Feeder |
|
| Auto Sheet Feeder Belt Width | 400mm |
| Auto Sheet Feeder Platform Width | 480mm |
| Support Paper Max Width | 420mm |
| Power | 200w |
| Machine size | 1500*655*1000mm |
| Wooden Box size | 1600*780*580; 90kg |
| Machine Weight | 75kg |
♦Product Advantages
♥Durable Output for Protection – Produces thicker, stronger crinkle strips ideal for shipping, packaging, and industrial cushioning.
♥Mid-Volume Efficiency – Balances production speed and capacity, making it perfect for small to medium-sized businesses without overconsuming energy.
♥Compact & Practical Design – Space-saving construction with easy controls ensures straightforward operation and maintenance, suitable for workshops or warehouses with limited floor space.
