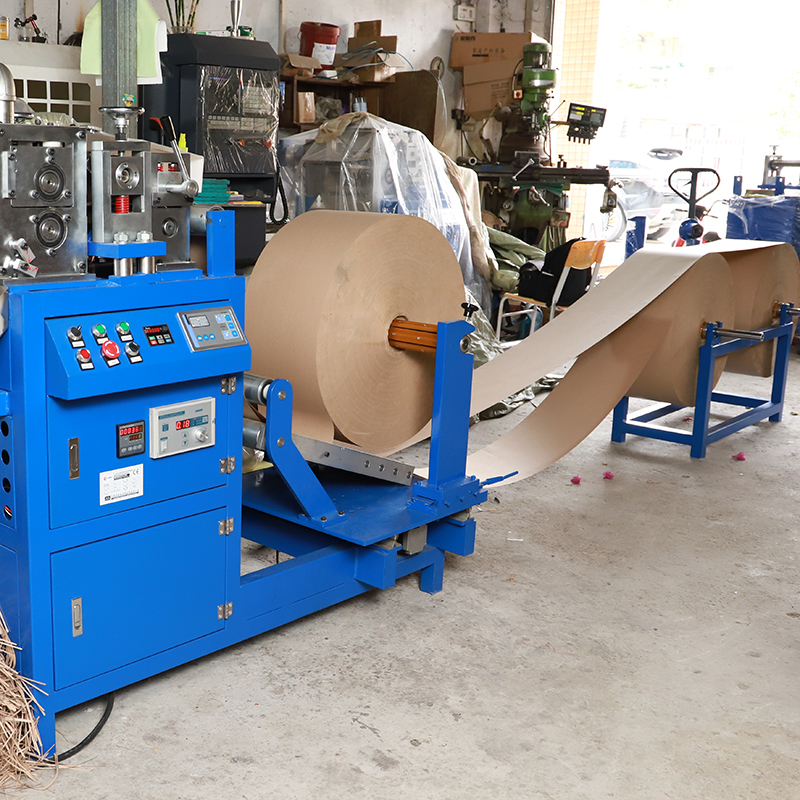

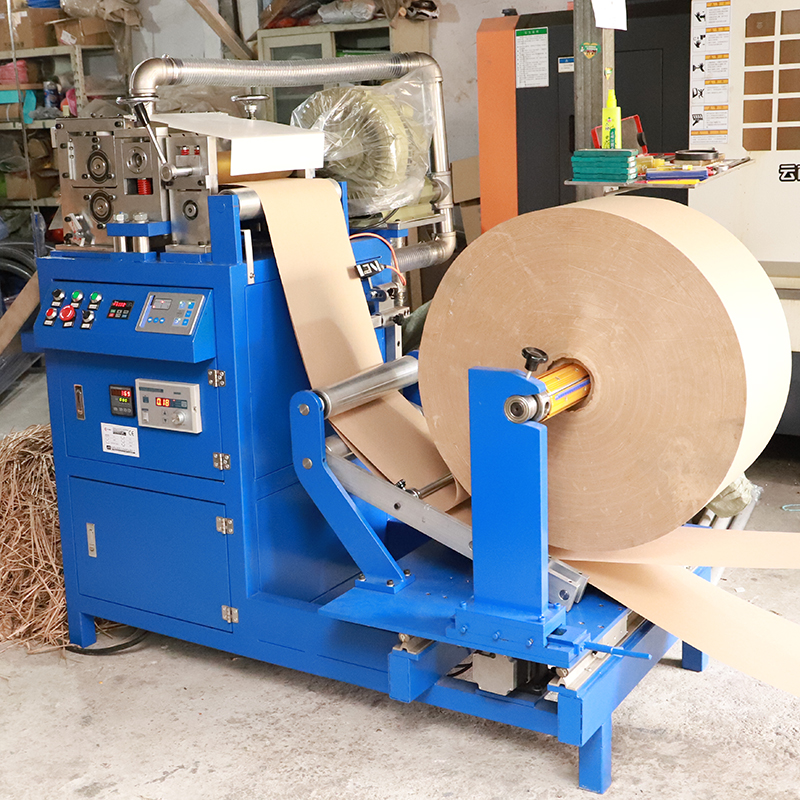

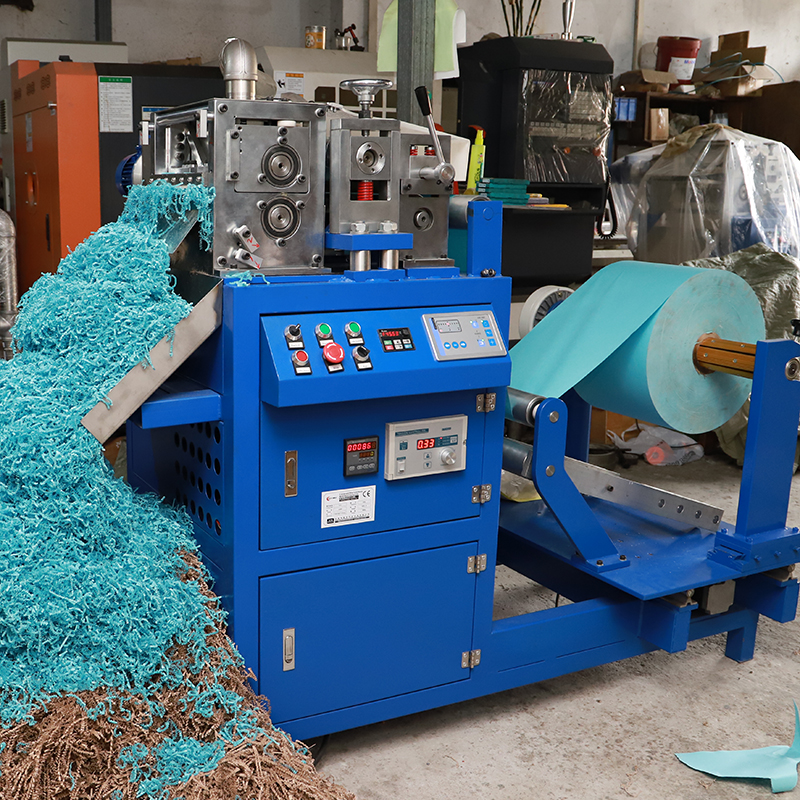

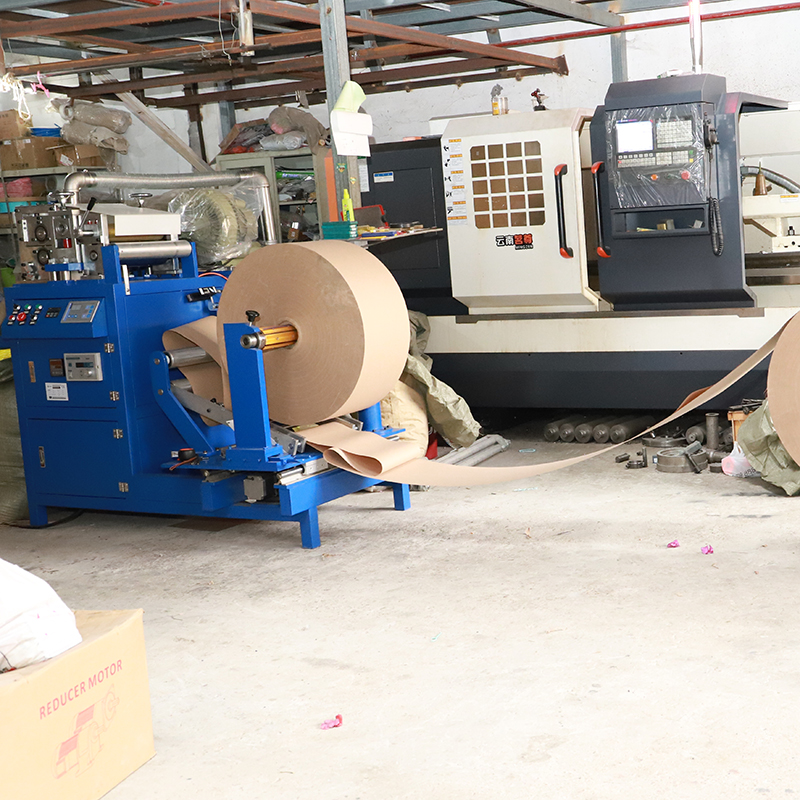

R-S-800 Crinkle Paper Shredder
- R-S-800
- Kraft Paper,Printed Paper,Colored Paper,Recycled Paper,Lightweight Cardstock
- About 100-120kg/hour
♦Product Usage Guide
Prepare kraft, colored, or recycled paper rolls and place them onto the wide feeding tray designed for bulk input. Adjust the tension and alignment to ensure smooth feeding. On the control panel, set shredding width and speed to match production requirements. Start the machine, and the R-S-800’s powerful motor and precision blades will process large volumes of paper quickly into uniform crinkle strips. Continuously monitor the output bin to avoid overfilling. After operation, power off, remove paper residues, and check blades to maintain consistent high-capacity performance.
♦Technical Parameters
|
R-S-800 Crinkle Paper Shredder |
|
| Paper strip width | 3mm |
| Feed inlet size | 300mm |
| Motor Power | Main motor power 3.8kw
Total power 6kw |
| Dimensions | Shredder: 1850×1150×1350mm;
Material Rack: 1000×450×500mm |
| Machine Weight | NW 770kg; GW 880kg |
| Voltage | 0-40N.m |
| Total Power | 6.5kw |
| Accepted Paper Thickness | 50-180g
For 3 layers production, best effect 50-60g For 1-2 layers production, best effect 70g |
| Cutting Speed | 0.6-0.7m/s(Adjustable) |
| Capacity | About 100-120kg/hour |
| Paper Width | 296mm |
| Support Paper Roll Diameter | Φ500-700mm |
| Warranty | 12 months |
♦Product Advantages
♥High Output Capacity – Equipped with a powerful motor and wide feed design, it processes large volumes of paper quickly and efficiently.
♥Versatile Material Handling – Suitable for kraft paper, recycled paper, colored paper, and light cardstock, meeting diverse packaging and decorative needs.
♥Eco-Friendly & Cost-Effective – Converts waste paper into reusable crinkle filler, reducing material costs while supporting sustainable packaging solutions.
