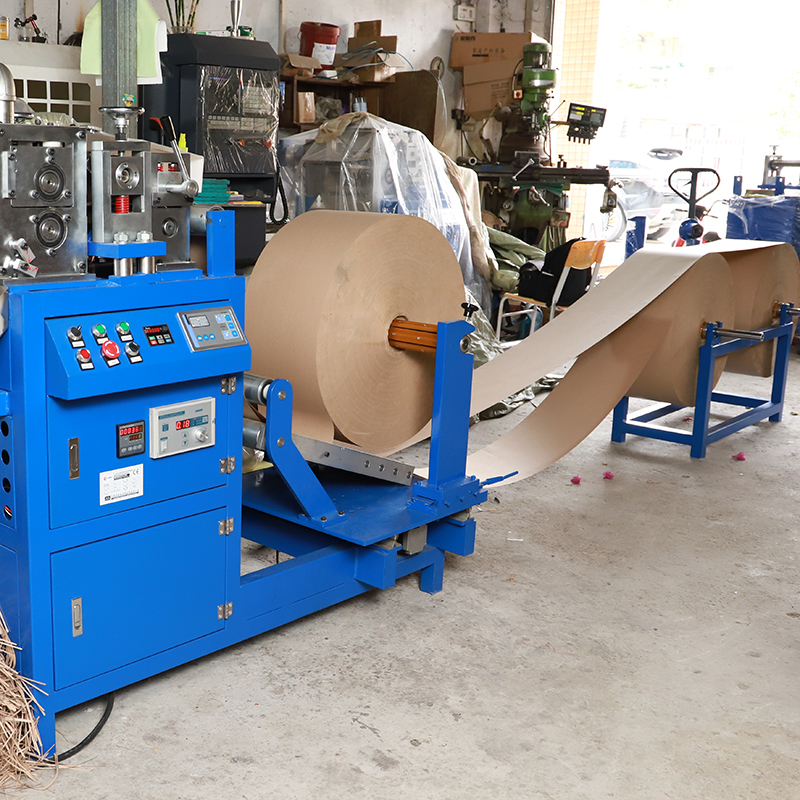

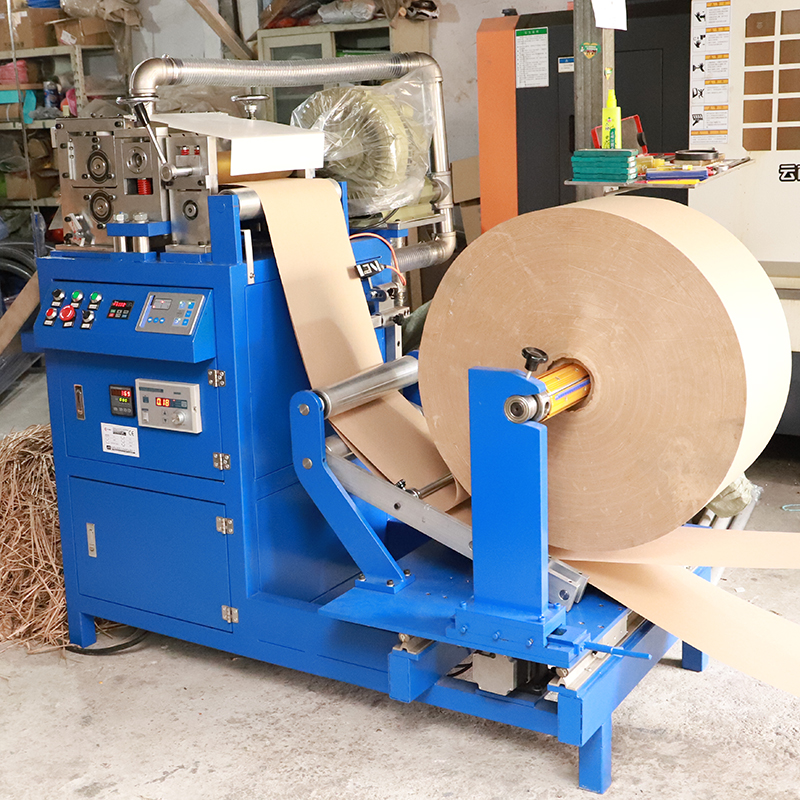

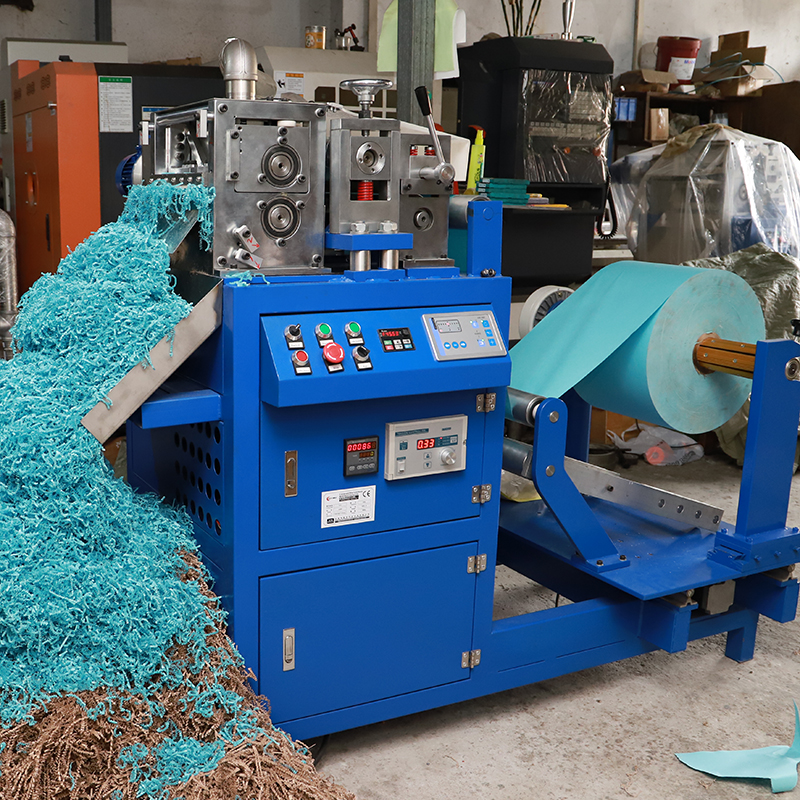

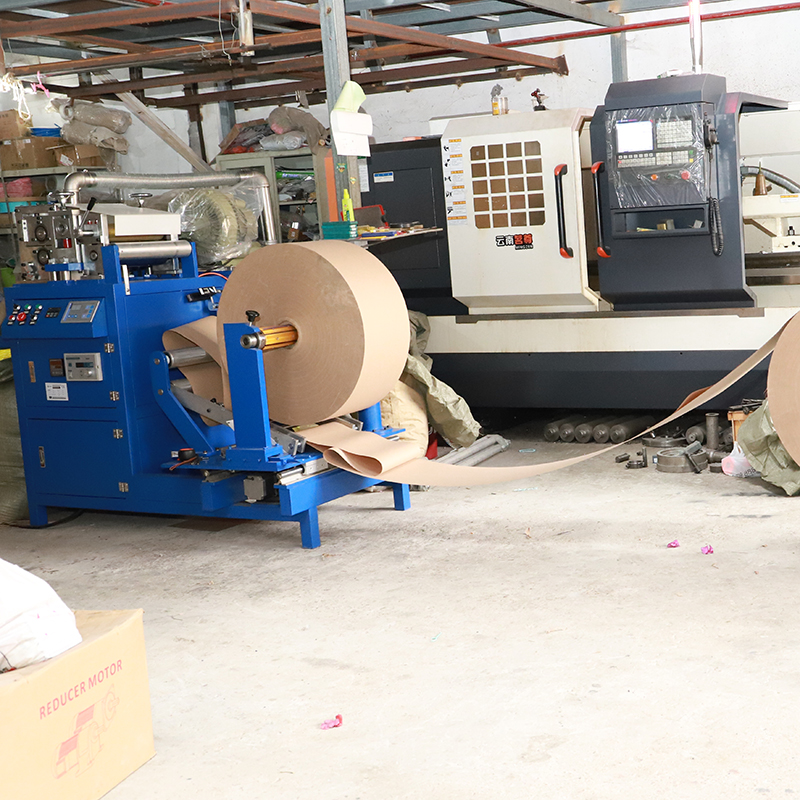

R-S-800 Crinkle Paper Shredder
- R-S-800
- Kraft Paper,Printed Paper,Colored Paper,Recycled Paper,Lightweight Cardstock
- About 100-120kg/hour
♦Product Usage Guide
Prepare kraft paper, colored paper, or recycled paper rolls and place them onto the wide feeding tray designed for high-volume input. Ensure the rolls are positioned securely, and adjust the tension and alignment to achieve smooth, continuous feeding. Proper setup helps reduce vibration, prevents paper deviation, and ensures stable operation during large-scale production.
On the control panel, set the appropriate shredding width and speed according to your production requirements. Once started, the R-S-800’s powerful motor and precision cutting blades efficiently process large quantities of paper into uniform crinkle strips. This model is ideal for high-capacity environments, delivering consistent output quality suitable for protective packaging and industrial use.
During operation, continuously monitor the output bin to prevent overfilling and maintain workflow efficiency. After production is complete, turn off the machine, remove any remaining paper residues, and clean key areas. Regularly inspect and maintain the blades to ensure long-term, stable, and high-performance operation.
♦Technical Parameters
|
R-S-800 Crinkle Paper Shredder |
|
| Paper strip width | 3mm |
| Feed inlet size | 300mm |
| Motor Power | Main motor power 3.8kw
Total power 6kw |
| Dimensions | Shredder: 1850×1150×1350mm;
Material Rack: 1000×450×500mm |
| Machine Weight | NW 770kg; GW 880kg |
| Voltage | 0-40N.m |
| Total Power | 6.5kw |
| Accepted Paper Thickness | 50-180g
For 3 layers production, best effect 50-60g For 1-2 layers production, best effect 70g |
| Cutting Speed | 0.6-0.7m/s(Adjustable) |
| Capacity | About 100-120kg/hour |
| Paper Width | 296mm |
| Support Paper Roll Diameter | Φ500-700mm |
| Warranty | 12 months |
♦Product Advantages
♥High Output Capacity – Equipped with a powerful motor and wide feed design, it processes large volumes of paper quickly and efficiently.
♥Versatile Material Handling – Suitable for kraft paper, recycled paper, colored paper, and light cardstock, meeting diverse packaging and decorative needs.
♥Eco-Friendly & Cost-Effective – Converts waste paper into reusable crinkle filler, reducing material costs while supporting sustainable packaging solutions.
