Honeycomb Paper Cushioning Machine
In modern packaging, sustainability and protection are equally important. The honeycomb paper cushioning machine has emerged as a popular solution for eco-friendly packaging. It produces expandable honeycomb paper that replaces plastic bubble wrap while offering excellent shock absorption. This article explains the function of honeycomb paper, how it provides cushioning, the structure and working principle of the machine, and the final output characteristics.
1. What Is Honeycomb Paper and Its Function
Honeycomb paper is a specially die-cut kraft paper that expands into a three-dimensional hexagonal structure when stretched. It is widely used in protective packaging for fragile items such as glassware, electronics, ceramics, and cosmetics.
Key Functions:
- Protective cushioning for fragile goods
- Void filling in packaging boxes
- Surface wrapping to prevent scratches
- Eco-friendly alternative to plastic packaging materials
Its lightweight nature and recyclability make it highly suitable for sustainable packaging solutions.
2. How Honeycomb Paper Provides Cushioning
The cushioning effect of honeycomb paper comes from its unique expandable structure.
Cushioning Mechanism:
- Hexagonal Structure Expansion
When stretched, the paper forms a honeycomb pattern that creates multiple air pockets. - Energy Absorption
These air pockets absorb and disperse external impact forces, reducing damage to products. - Elastic Support
The interlocking cells provide flexibility and resilience, allowing the material to return to its shape after compression. - Friction Locking
The textured surface grips items securely, minimizing movement during transport.
This combination of structure and material properties ensures reliable protection without the need for plastic fillers.

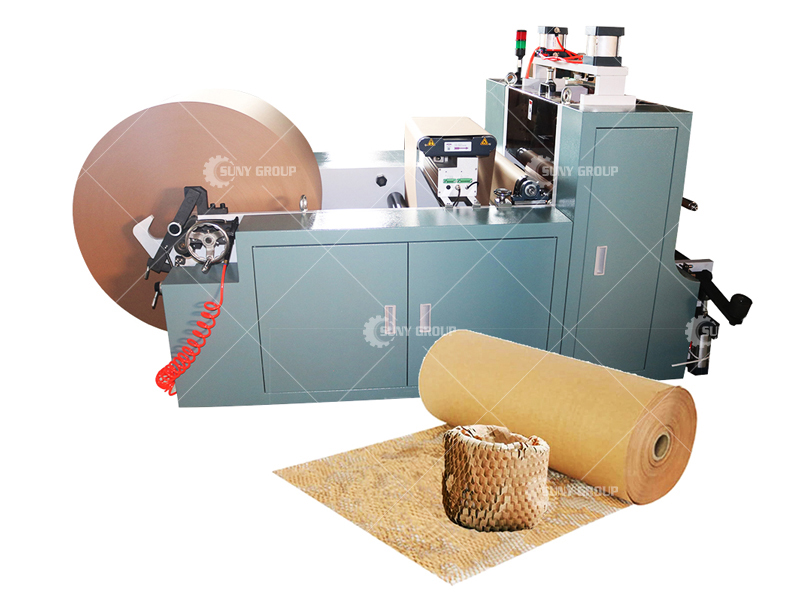

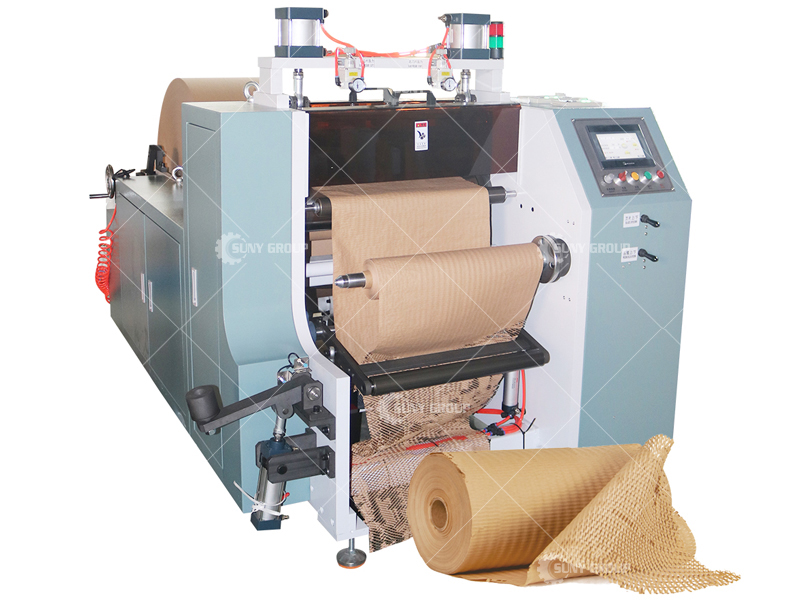

3. Structure of a Honeycomb Paper Cushioning Machine
A honeycomb paper cushioning machine is designed to efficiently convert kraft paper rolls into expanded honeycomb wrapping material.
Main Components:
- Paper Roll Holder
Holds and feeds the kraft paper into the machine. - Die-Cutting System
Pre-cuts the paper with precise slits that form the honeycomb pattern. - Stretching Mechanism
Expands the paper into a 3D honeycomb structure. - Feeding Rollers
Ensure smooth and continuous paper movement. - Control System
Allows operators to adjust speed, length, and output. - Cutting Device
Cuts the expanded paper into required lengths.
4. Working Principle of the Machine
The honeycomb paper cushioning machine operates through a simple but efficient process:
- Feeding
Kraft paper roll is loaded and fed into the machine. - Die Cutting
The paper passes through blades that create uniform slits. - Expansion
As the paper is pulled forward, the slits expand into a honeycomb structure. - Stretching and Forming
The machine stretches the paper to maximize cushioning volume. - Cutting and Output
The expanded paper is cut to the desired size and ready for use.
This automated process ensures high efficiency and consistent product quality.
5. Final Output Characteristics of Honeycomb Paper
After processing, the honeycomb paper exhibits several advantageous properties:
Output Features:
- Three-dimensional structure with excellent cushioning performance
- Lightweight yet strong, reducing shipping costs
- Flexible and easy to wrap around various shapes
- 100% recyclable and biodegradable
- Aesthetic appearance, enhancing product presentation
Application Fields:
- E-commerce packaging
- Electronics protection
- Glass and ceramic wrapping
- Industrial product packaging
- Gift packaging
The honeycomb paper cushioning machine plays a crucial role in modern sustainable packaging. By transforming kraft paper into a shock-absorbing honeycomb structure, it provides an effective, eco-friendly alternative to traditional plastic materials. With its simple structure, efficient working principle, and high-quality output, this machine is an ideal choice for businesses aiming to improve packaging performance while reducing environmental impact.
